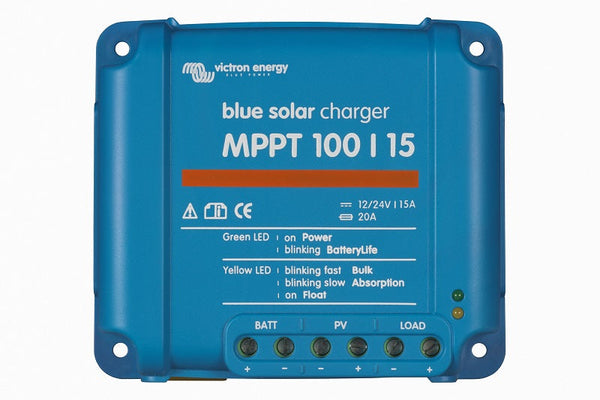

Ultra-fast Maximum Power Point Tracking (MPPT)

When there are cloudy skies with the light intensity changing continuously an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to standard PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Specifications

  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Battery Life: intelligent battery management
  • Resin encapsulated electronics
  • Automatic voltage recognition 12/24V
  • Maximum Charge Current - 15 Amps
  • Maximum PV Panels 200W-12V /400W-24V
  • Maximum PV open circuit voltage - 100V
  • 3 Stage Battery Charging with adaptive charge

Protection

  • Over Temperature
  • Short Circuit
  • Reverse Polarity



5-year Warranty

Dimensions: 100 x105 x 40 mm

Weight: 0.5kg

View all of our BlueSolar Controllers.
